Purchasing a premium exhaust upgrade only to discover a one-millimeter discrepancy prevents installation is a costly, time-consuming, and highly common frustration. Guessing the inlet diameter or relying on universal fit claims leads to severe exhaust leaks. It causes a loss of essential backpressure, poor engine performance, and potential localized heat damage to motorcycle components. When you mismatch the pipe sizes, you force the engine to work against turbulent airflow, negating any performance gains you hoped to achieve. To ensure a seamless installation and optimal performance, buyers must utilize a systematic framework. You need to measure, evaluate, and match the exact inlet diameter to your specific motorcycle's mid-pipe output. Getting this right the first time saves you from dealing with messy high-temp silicone fixes, returning parts, or permanently damaging your factory header pipes during a forced installation attempt.
Match ID to OD: The Inner Diameter (ID) of the slip-on exhaust must precisely match the Outer Diameter (OD) of the motorcycle’s mid-link pipe or header, factoring in gasket thickness if applicable.
Precision is Mandatory: Always use digital calipers for measurement; a flexible tape measure is a secondary fallback, but a 1mm variance (e.g., 51mm vs. 52mm) dictates fitment failure or success.
Metric vs. Imperial Standards: Be aware of the standard division—metric sizing (e.g., 51mm, 60mm) dominates European and Asian sport/naked bikes, while fractional imperial sizing (e.g., 1.5", 1.75", 1.85") dominates American V-Twins and cruisers.
Performance Trade-offs: Exhaust tube diameter must align with engine displacement and power output—oversizing the inlet and muffler core sacrifices low-end torque for high-RPM flow.
Brand-Specific Nuances: OEM mid-pipes on specific models require exact-spec sizing, making direct-fit systems vastly superior to universal mufflers requiring adapter sleeves.

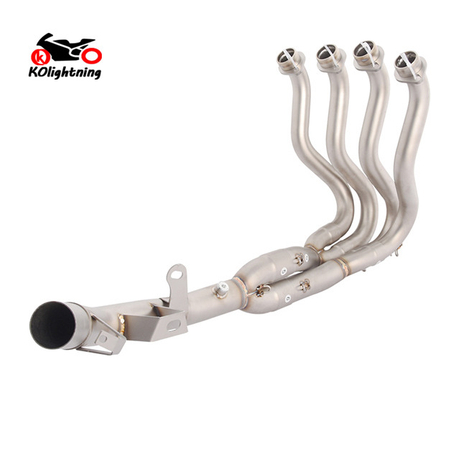

The inlet is the specific junction where the aftermarket muffler mates to the factory mid-link pipe or header system. You must differentiate between the Inner Diameter (ID) of the slip-on muffler and the Outer Diameter (OD) of the receiving pipe. The muffler ID slides over the mid-pipe OD. Sizing standards vary globally, and understanding this distinction is the first step in any exhaust modification project. When you look at a muffler, the inlet is the side facing the engine, while the outlet is where the exhaust gases exit into the atmosphere. The internal construction of the muffler often tapers or expands from this inlet point, but the physical connection point dictates the baseline flow characteristics.
Certain builds require fractional inch components. Sizes like 1-5/8", 1.75", and 1.85" are common on heavy cruisers and domestic V-twins. Standard metric dimensions like 51mm and 60mm dominate import sport models. Mixing these up is a guaranteed way to ruin an installation. For example, trying to force a 2-inch (50.8mm) imperial slip-on onto a true 51mm metric mid-pipe will result in binding, galling the metal, and ultimately failing to seat the muffler deep enough to secure the mounting bracket.
Standard Sizing Category |
Common Measurements |
Typical Motorcycle Application |
|---|---|---|
Small Metric |
38mm, 45mm |
Entry-level sportbikes, small displacement commuters |
Standard Metric |
51mm |
600cc-1000cc sportbikes, middleweight naked bikes |
Large Metric |
60mm, 65mm |
Superbikes, high-output track machines |
Standard Imperial |
1.50", 1.75" |
Sportsters, mid-size metric cruisers |
Large Imperial |
2.00", 2.25" |
Heavyweight touring cruisers, large displacement V-Twins |
A perfect slip-fit requires precise mechanical tolerances. The connection must be snug enough to seal completely under clamping force or spring tension. It must remain loose enough to slide on without metal deformation. If the fit is too tight, you risk damaging the mid-pipe or the muffler inlet during installation. If it is too loose, you will never achieve a proper seal, regardless of how much torque you apply to the exhaust clamp.
The universal fit myth often misleads riders. Relying on multi-step adapter sleeves introduces multiple potential failure points for exhaust leaks. Every time you add a sleeve, you add another gap that exhaust gases can escape through. Direct-fit applications eliminate these weak points entirely. When you buy a system designed specifically for your bike's exact mid-pipe OD, you ensure the exhaust pulses travel smoothly into the muffler core without hitting a wall of stepped adapters, which causes turbulence and robs the engine of scavenging efficiency.
Digital calipers are the mandatory tool for technical evaluation. They provide necessary millimeter and decimal-inch accuracy. You cannot eyeball exhaust fitment. A quality set of digital calipers allows you to measure the exact outer diameter of the mid-pipe down to the hundredth of a millimeter. This is critical because exhaust pipes expand and contract with heat, and factory tolerances can vary slightly.
A flexible tape measure serves as a secondary method. You can calculate diameter via circumference by dividing the measurement by 3.14159. Use this only when calipers are strictly unavailable. If you must use this method, use a tailor's tape measure that wraps tightly around the pipe without kinking. Metal tape measures will not conform to the pipe accurately enough to give you a reliable circumference reading.
Component Isolation: Remove the factory muffler to expose the bare mid-pipe for an unobstructed measurement. Do not try to measure the pipe while the old muffler is still attached, as you will likely measure the flared end of the muffler instead of the actual mid-pipe.
Surface Preparation: Clean the pipe end of carbon buildup, rust, and old gasket material. Debris creates artificially inflated measurements. Use a wire brush or emery cloth to take the pipe down to bare metal at the connection point.
Multi-Angle Verification: Measure the Outer Diameter (OD) of the mid-pipe at two perpendicular angles. This checks for pipe ovaling or heat distortion. Exhaust pipes can become slightly out-of-round from years of heat cycling and clamp pressure.
Gasket Allowances: Factor in the thickness of OEM graphite or crush gaskets if the new system requires their retention. If your bike uses a thick graphite sleeve gasket, you must measure the OD of the pipe with the gasket installed, or order a muffler with an ID that accommodates the bare pipe and plan to discard the gasket.
Manufacturer Schematic Cross-Reference: Double-check field measurements against the manufacturer's listed technical schematics. This accounts for nominal sizing discrepancies and ensures you are ordering the correct part number for your specific year and model.
Correct inlet diameter maintains the velocity of exhaust pulses. High velocity pulls subsequent exhaust gases from the combustion chamber through scavenging. The internal baffle core sizing relates directly to the inlet diameter. A mismatched internal-to-external ratio disrupts backpressure. When the exhaust valve opens, a high-pressure pulse travels down the pipe. Behind this pulse is a low-pressure area. If the pipe diameter is correct, this low-pressure area helps suck the next exhaust charge out of the cylinder.
Oversized diameters reduce exhaust velocity, killing low-end torque and drivability. If you put a massive 60mm inlet on a 300cc engine, the exhaust gases expand too quickly, lose heat, and slow down. This destroys the scavenging effect. Undersized diameters restrict flow, choking high-RPM horsepower and increasing engine heat. If you force a 1000cc superbike to breathe through a 38mm pipe, the exhaust gases back up into the combustion chamber, causing the engine to run hot and lose top-end power.
Power Output Level |
Target Diameter (Imperial) |
Target Diameter (Metric) |
Primary Focus |
|---|---|---|---|
Low-to-Mid Power (Under 50 HP) |
1.25" to 1.50" |
Approx. 32mm - 38mm |
Maintaining exhaust gas velocity and low-end torque |
Mid-Range Power (50 to 100 HP) |
1.75" to 2.00" |
Approx. 45mm - 51mm |
Balancing mid-range punch with top-end flow |
High Performance (100 to 180+ HP) |
2.25" to 2.36" |
Approx. 57mm - 60mm |
Maximizing peak horsepower and high-RPM evacuation |
Sub-500cc engines typically utilize 32mm to 38mm inlets to maintain necessary backpressure. These smaller engines rely heavily on exhaust velocity to produce usable street power. For 600cc to 1000cc sportbikes, the industry standard 51mm and 60mm mid-pipe outputs prevail. The 51mm size is incredibly common for aftermarket mid-pipes that delete the catalytic converter, providing a good balance of flow and velocity for inline-four engines.
Large displacement cruisers use common sizing parameters ranging from 1.75" to 2.25". This depends heavily on the header configuration and specific V-twin exhaust routing. A 2-into-1 system on a large V-twin will typically require a larger inlet at the collector than a true dual system where each cylinder has its own dedicated muffler.
Vast mid-pipe dimension differences exist across the Kawasaki lineup. A Ninja 400 requires vastly different specs than a ZX-10R. Modern models feature pre-installed catalytic converters, welded mid-pipes, and proprietary clamping mechanisms. These dictate specific inlet requirements. You cannot simply buy a generic muffler and expect it to bolt onto a modern Kawasaki without significant modification or specialized link pipes.
Upgrading to a dedicated Kawasaki Slip-on Exhaust ensures proper fitment. Common direct-fit specifications align perfectly with popular sport platforms. For instance, many modern ZX-6R models require a specific mid-pipe to bypass the bulky under-slung pre-muffler box. Buying a system designed for that exact chassis ensures the inlet diameter matches the header collector perfectly, and the mounting brackets align with the factory rearset points.
Navigating CFMOTO's specific exhaust routing requires understanding standard metric sizing. They frequently utilize 51mm on mid-weight naked and sport models. You must ensure the chosen inlet diameter provides adequate clearance. The subsequent mid-pipe angle must clear the swingarm and rear brake assemblies. CFMOTO bikes often feature tight packaging around the rear suspension linkage, meaning the exhaust must follow a very specific path.
Matching a CFMOTO Slip-on Exhaust to their growing range of performance street and adventure bikes guarantees optimal integration. Adventure models like the Ibex 450 require exhaust systems that not only fit the mid-pipe perfectly but also tuck in tightly to avoid damage during off-road riding. A model-specific system accounts for these clearance issues while providing the correct 51mm or 60mm inlet to match the factory header output.
It is occasionally acceptable to use a reducer sleeve. Adapting a 51mm slip-on to a 38mm header is a common example. However, you must understand the high probability of exhaust leaks. Turbulent airflow occurs at the step-down point. When exhaust gas hits the flat edge of a reducer sleeve, it creates a vortex that disrupts the smooth flow of gas out of the tailpipe.
Using high-temperature RTV silicone is necessary to mitigate these sealing risks. If you must use a reducer, apply a thin bead of copper-based high-temp silicone to both the inside and outside of the sleeve before sliding the muffler on. This helps fill the micro-gaps that the clamp cannot compress. However, this is a messy process and makes future removal of the exhaust much more difficult.
T-Bolt clamps offer the best practice for securing slotted inlet pipes. They provide even pressure without crushing the inner mid-pipe. Standard worm-gear clamps often pinch the metal unevenly, creating a teardrop shape that leaks exhaust gas. A heavy-duty stainless steel T-bolt clamp wraps completely around the inlet, applying uniform radial pressure to lock the muffler in place.
Tension springs are standard for slip-fit race systems. You may need to weld spring hooks if the OEM mid-pipe lacks pre-equipped mounting points. Springs allow the exhaust system to flex slightly as the engine moves in the frame and as the pipes expand from heat. A high-quality Slip-on Exhaust System will include the appropriate mounting hardware, whether that is a precision-machined clamp or heavy-duty retention springs with rubber vibration dampeners.
Acquire a digital caliper to measure the bare mid-pipe at multiple angles before ordering any parts.
Cross-reference the exact millimeter specification with the exhaust manufacturer's technical data sheet prior to purchase.
Prioritize direct-fit, model-specific exhaust systems over universal options to eliminate error-prone adapter sleeves.
Factor in the thickness of any required OEM graphite gaskets before finalizing your inlet diameter choice.
A: You must measure the Outer Diameter (OD) of your motorcycle's bare mid-pipe. The aftermarket slip-on muffler's Inner Diameter (ID) will slide over this pipe. The two measurements must match precisely.
A: An oversized inlet causes severe exhaust leaks. It prevents proper clamping, disrupts exhaust scavenging, reduces engine backpressure, and can cause localized heat damage to surrounding motorcycle components.
A: While 51mm (approximately 2 inches) is highly common for 600cc to 1000cc sportbikes, it is not universally applicable. Cruisers and smaller displacement engines use vastly different sizes.
A: Consult your motorcycle's factory service manual or the manufacturer's technical schematics. You can also check dedicated owner forums for verified measurements from other riders.
A: Yes, reducer sleeves exist. However, they introduce multiple joints that increase the risk of exhaust leaks and create turbulent airflow. Direct-fit systems are always recommended over adapters.
A: It depends on the specific exhaust design. Some slip-on systems require the reuse of the OEM graphite gasket, while others are designed for a direct metal-to-metal slip fit using high-temp silicone.
A: Wrap a flexible tape measure around the pipe to find the circumference. Divide that number by 3.14159 (Pi) to calculate the approximate outer diameter. Calipers remain the preferred method.
